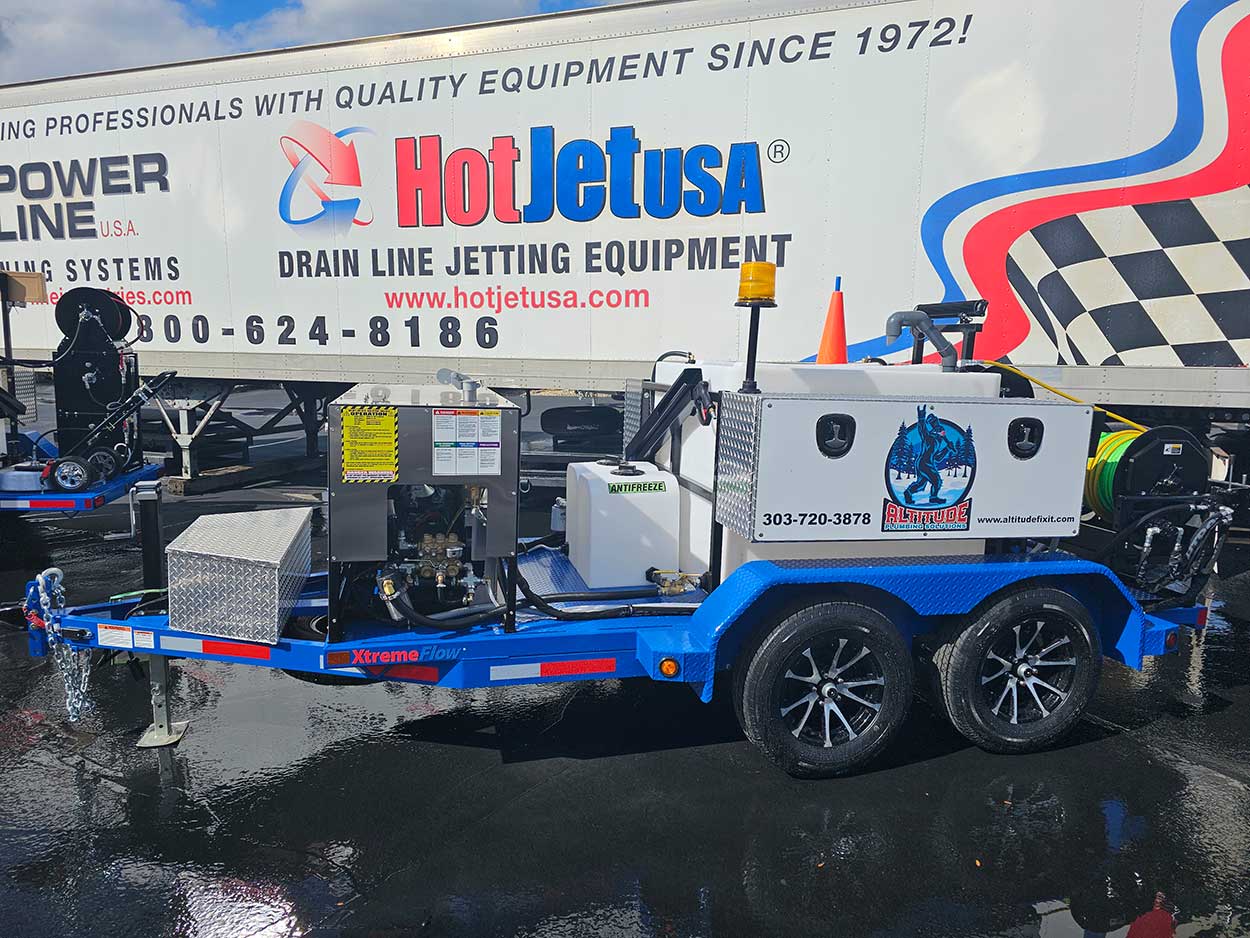

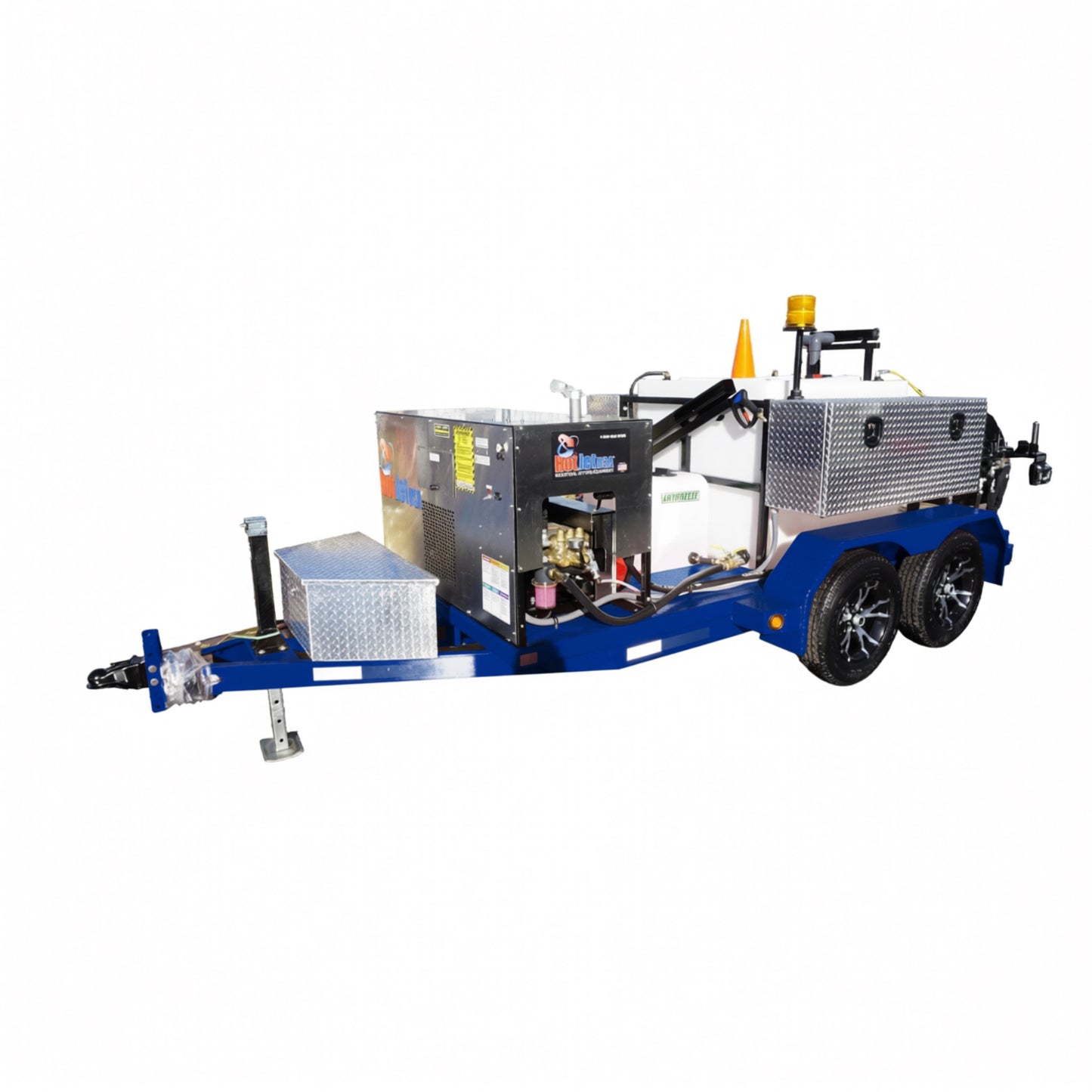

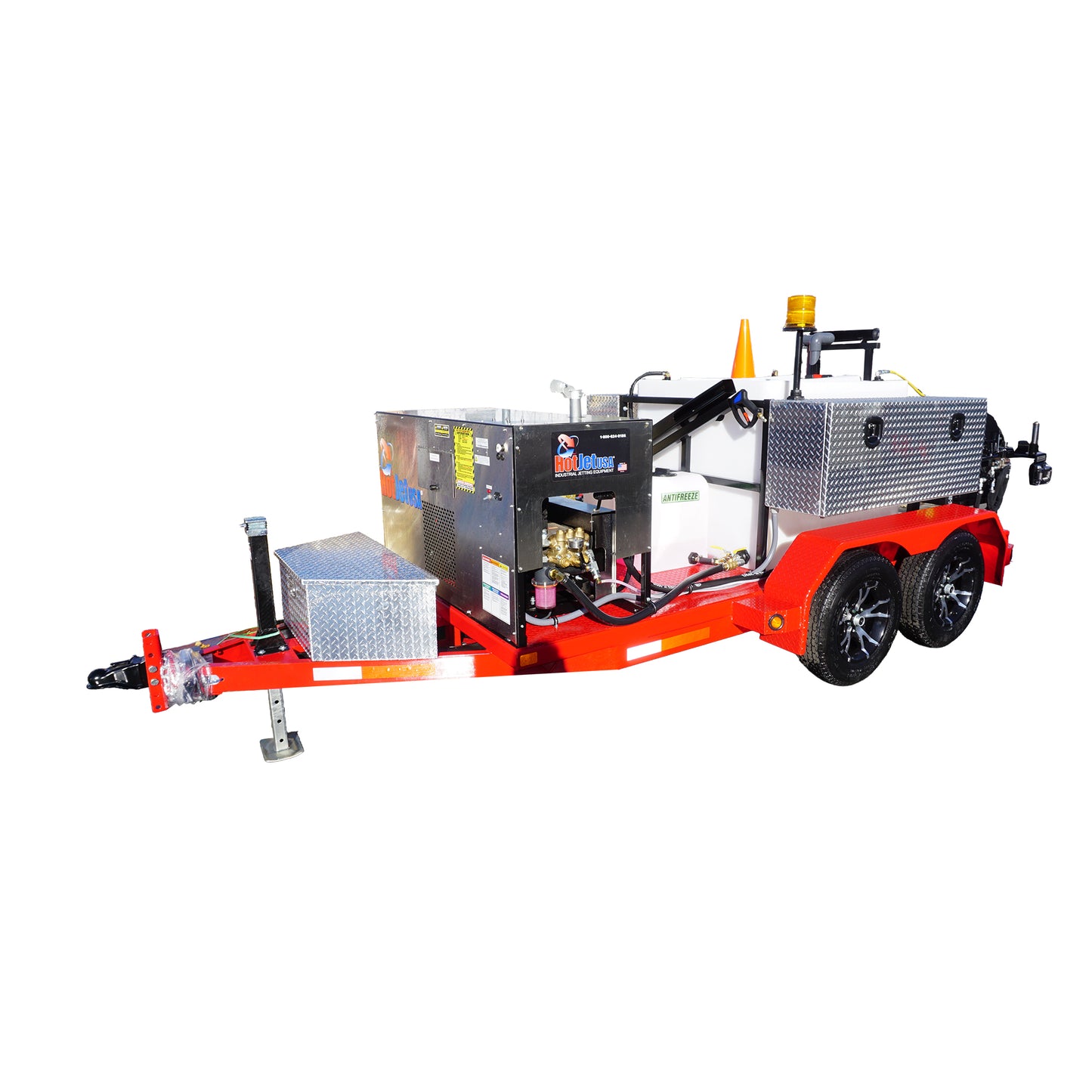

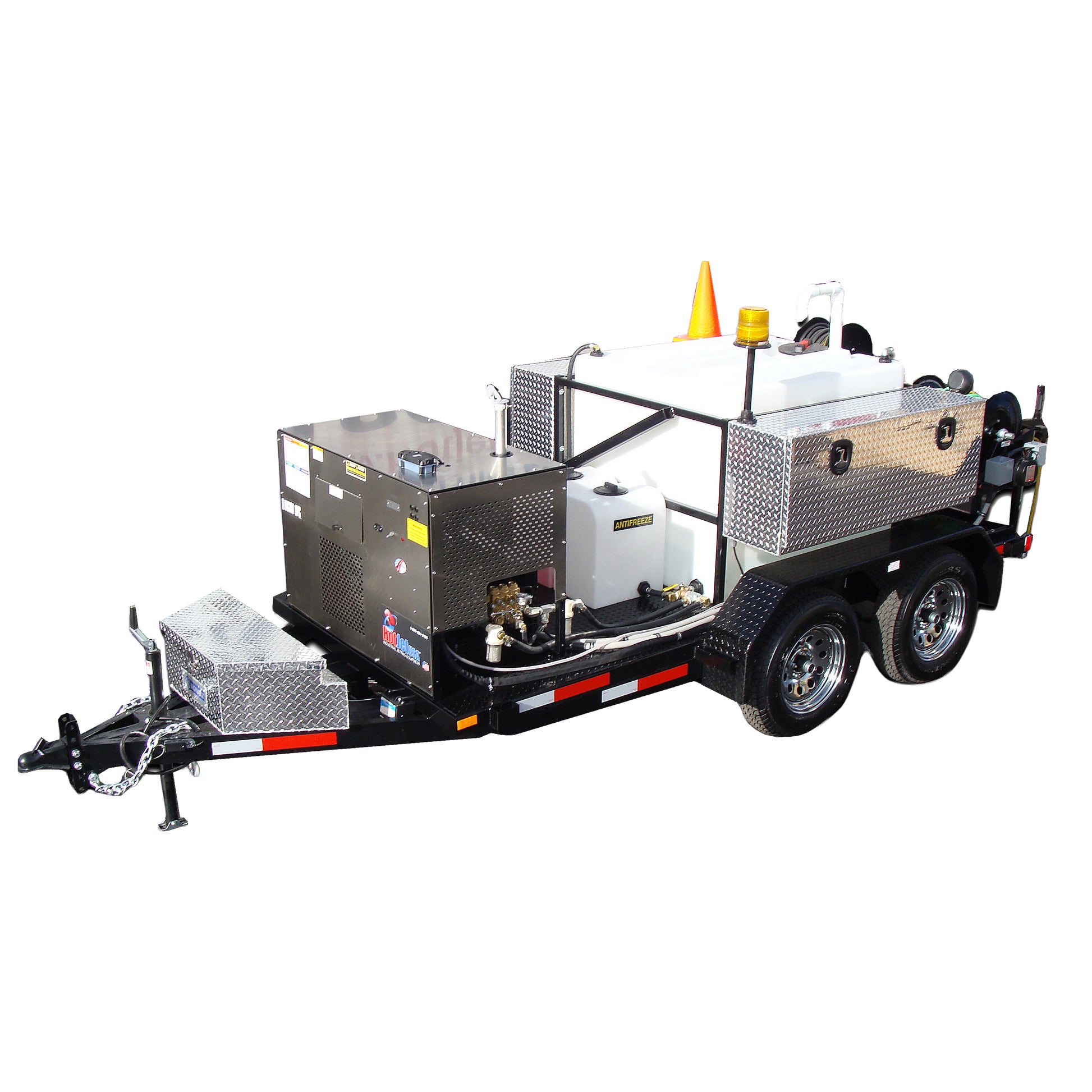

XtremeFlow II Cold Water Trailer Jetter

Part No. XF2TA1040CW

• 35HP Vanguard
• 10GPM @ 4,000 PSI
• Drive Triple V-Belt
• Trailer Size 5′ x 12′ Deck
• Tandem Axle, Powder Coated
• Axle Rating 2 x 3,500lb
• Hydraulic Hose Reel
• Warthog Nozzle INCLUDED!

Pump

• Premium Tri-plex Series Pump
• Triple Power V-Belt Driven
• Dual Safety Adjustable Blow Off Valves and Pump Saver System
• Dual Hose Pulsation Controls

Motor Description

• 35HP Vanguard Gas Engine
• Low Engine Oil/High Temperature Auto Shutdown System
• 14 Gallon Fuel Tank
• Rear Throttle Control

Hose & Hose Reels

• 300’ of 3/8” Jetting hose rated @ 12,000 PSI Burst with 120° Thumb Control Guide Arm
• Hydraulic Hose Reel

Nozzles

• 1/2” – Lazer, Ram
• 3/8” – Lazer, Ram, Spinner and De-Greaser / De-Icer
• Power Wash Nozzles Included

Safety Features

• 10’ Safety Colored Leader Hose
• 1/2” and 3/8” “Stinger” Pipes Included
• Rotary Safety / Beacon Light
• Gloves, Eye Protection and Full Safety Operating Manuals included
• Over PSI Safety Pop-off Valve

Trailer Description

• Full Premium Powder Coat Epoxy
• Rugged, Specially Engineered Trailer to Haul the Equipment and Water Load
• Leaf Spring Axles Cushion and Distribute the Weight for Easy Towing
• 5’x12’ Tandem Axle

General Specifications

• 330 Gallon Water Capacity
• Moulded HDP Water Tank
• Low Water “Shut Off” Feature
• 2” x 36” Tiger Tail Hose Protector
• Adjustable Pressure Relief/Control Valve(s)
• Rear LED Lighting
• 2” Fast Fill

Overall Dimensions

• Overall Length 16’ 6” incl. hitch
• Deck Length 12’
• Height 8’ with safety light
• Overall Deck Width 7’
• Weight (Dry) 2,950 lbs
• Weight (Full Load ) 6,100 lbs
