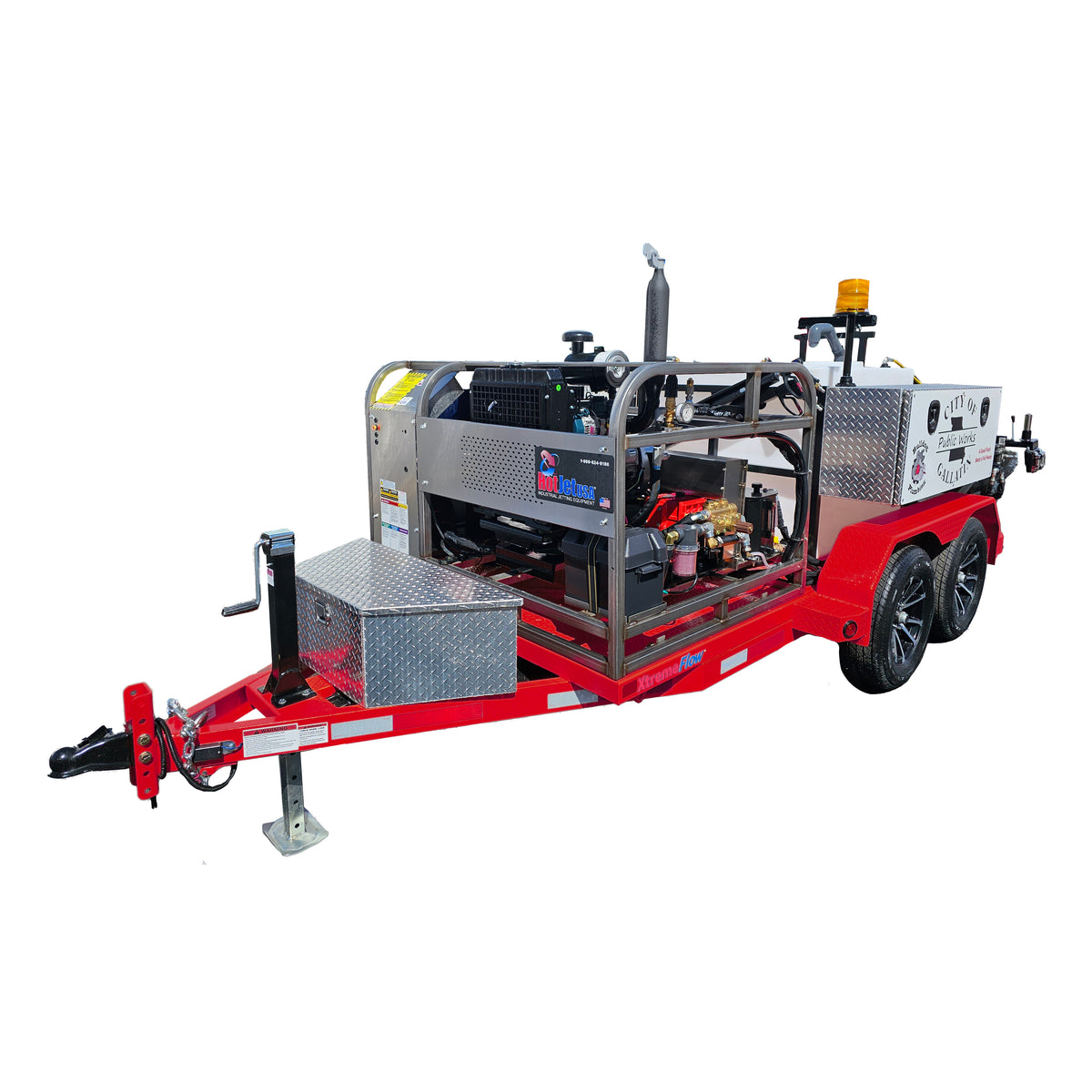

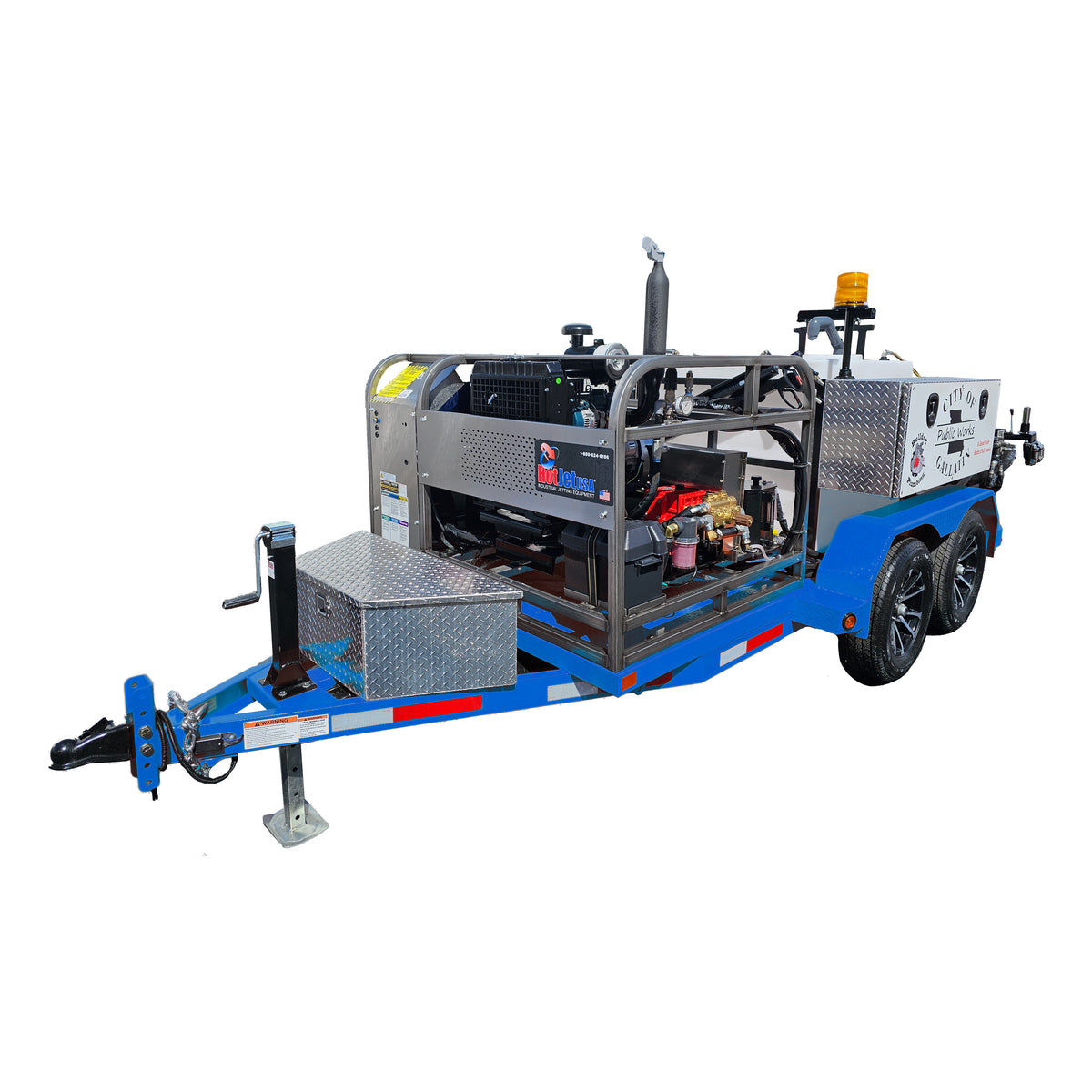

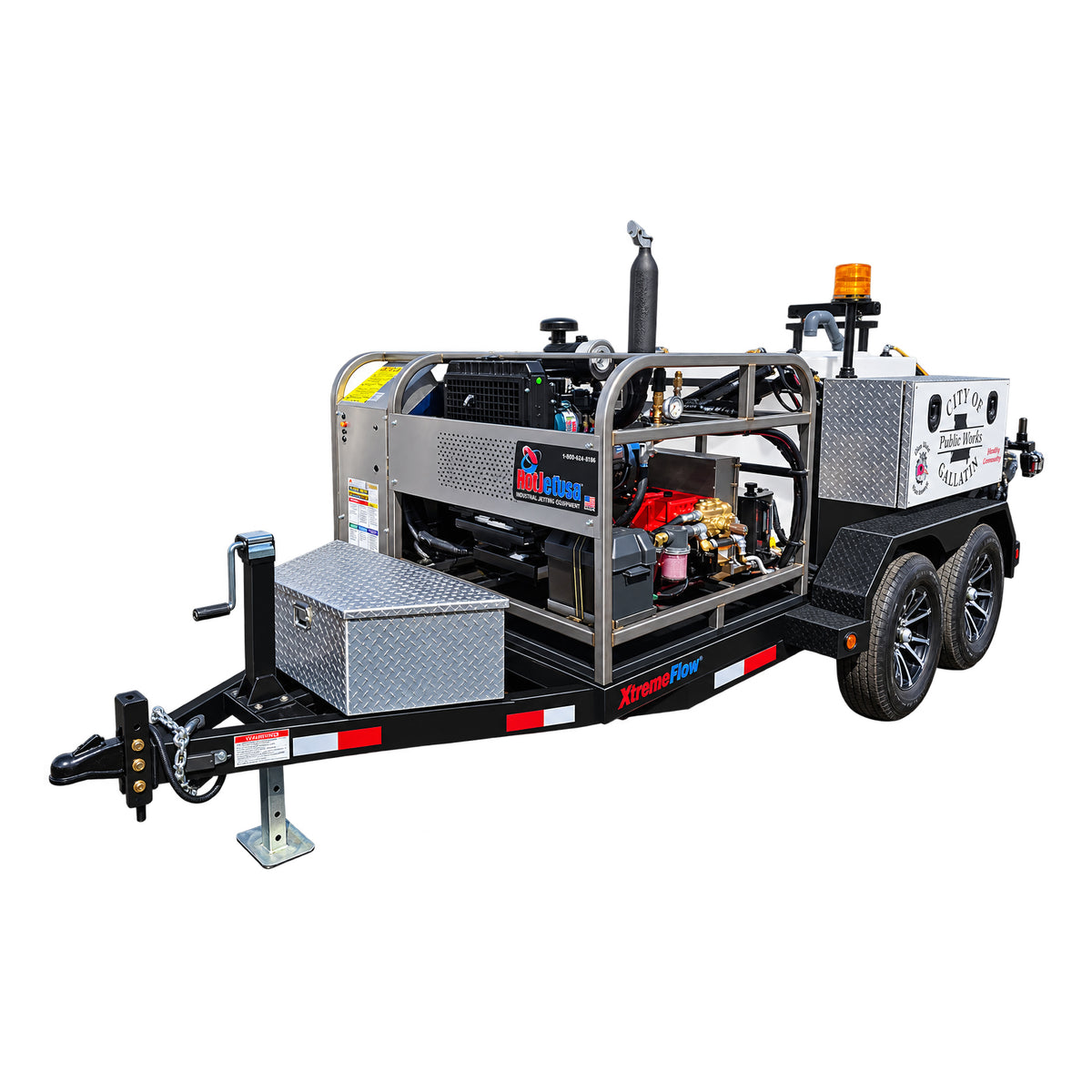

Cold Water Diesel Powered Trailer Jetter

Part No. XFDTA1040KK

• 24.8HP Kubota Engine
• 12GPM @ 4,000PSI
• Cold Water Operation
• Trailer Size 5’x12′ Deck
• Tandem Axle, Powder Coat
• Axle Rating 2 x 3,5000lb

GENERAL SPECIFICATIONS

• 330 or 660 Gallon Water Capacity
• Molded HDP Water Tank(s)
• Nema 4 Rated Control Panel
• Low Water “Shut Off” Feature
• 10’ Safety Colored Leader Hose
• 2” x 36” Tiger Tail Hose Protector
• Powered, Variable Speed Hose Reel with 300’ of 3/8” Jetting Hose Rated @ 16,000 PSI Burst Pressure
• Adjustable Pressure Relief/Control Valve(s)
• Adjustable Pulsation System with Control
• Hose Reel with 100’ of 3/4” Supply hose
• Rotary Beacon Light
• “Fast Fill” for Hydrant Hook-Up

PUMP

• Premium Giant Pump 12 GPM @ 4,000 PSI
• Triple Power Belt Driven
• Dual Safety Rupture Disks and Pump Saver System
• Rear Throttle Control

MOTOR DESCRIPTION

• 24.8 Kubota Engine
• Low Noise Muffler
• EPA Tier 4 Rated
• Low Engine Oil/High Temperature Auto Shutdown System
• 24 Gallon Diesel Fuel Tank
• Large Battery Box

TRAILER DESCRIPTION

• Rugged, Compact Specially Engineered Trailer to Haul the Equipment and Water Load
• Leaf Spring Axles Cushion and Distribute the Weight for Easy Towing
• 5’x12’ Tandem Axle
• Tandem Axle (2 x 3,500 lb)
• Dual Axle Brake – DOT Legal in all 50 States
• Full Premium Powder Coat

NOZZLES

• Warthog
• Lazer
• Ram

UPGRADES AVAILABLE

• Portable Reel with 100’ 1/4” Jetting Hose
• 12 Volt Rear Power Connection for Spot Light or Camera
• Safety Cone Holder
• Rear LED Lighting
• Remote Control – Solid State Wireless Unit up to 300’
• 2nd Hose Reel for Soap Injection

OVERALL DIMENSIONS

• Overall Length 16’ 6” incl. hitch
• Deck Length 12’
• Height 8’ w/safety light
• Overall Deck Width 7’
• Weight Dry 2,950 lbs
• Weight Full Load 6,100 lbs
