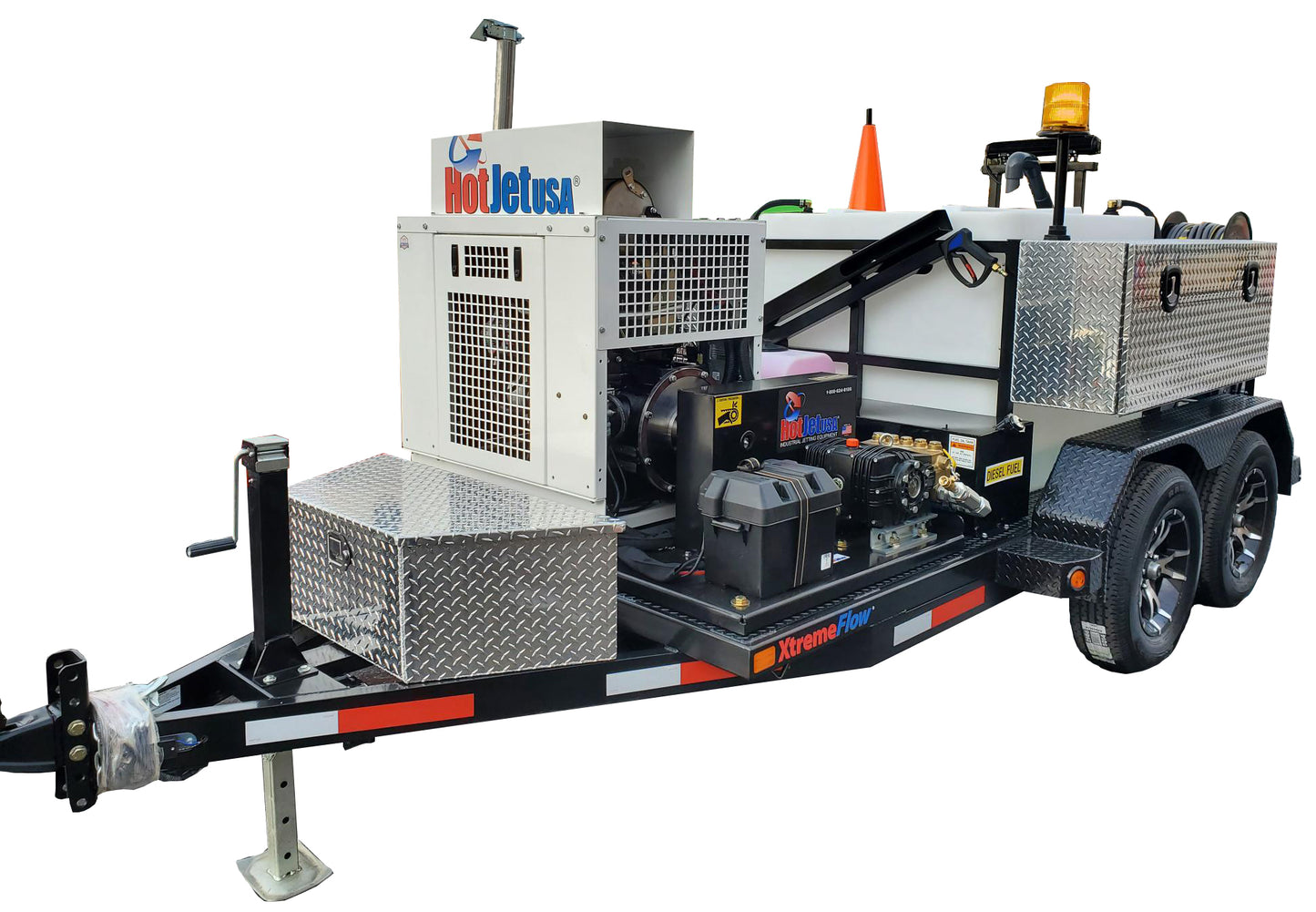

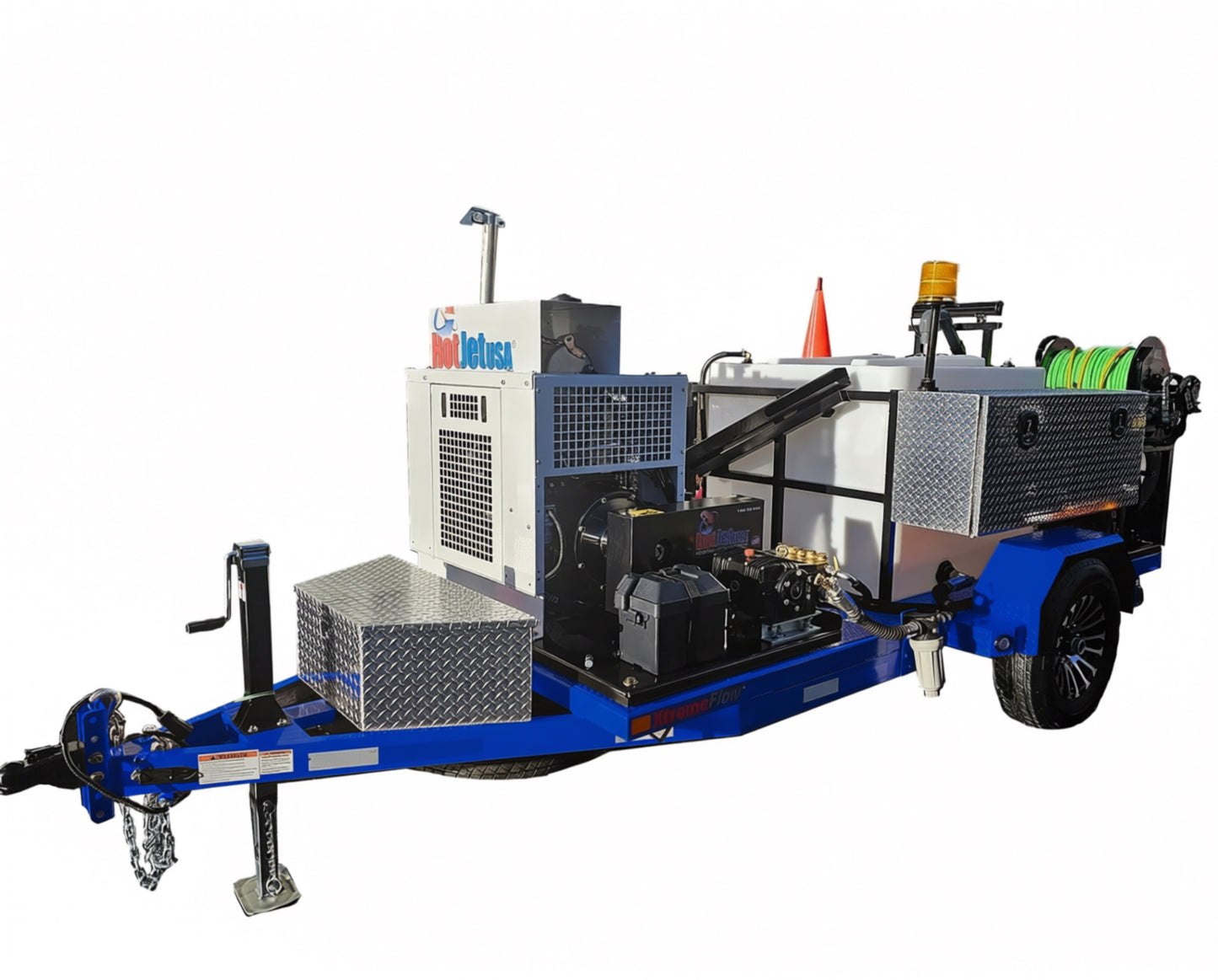

BIG DADDY COLD WATER TURBO DIESEL 20GPM @ 4,000 PSI
BIG DADDY COLD WATER TURBO DIESEL 20GPM @ 4,000 PSI
Part No. XFDTA2040Y | XFDSA2040Y
- 59HP Yanmar Engine by John Deere
- 20GPM @ 4,000 PSI
- Power Belt
- Trailer Size 5’x12’ to 5’x16’ Deck
- Choice of Single or Tandem Axle, Powder Coated
- Axle Rating 2 x 3,500 LB.
Yanmar Powered Units are:
- Tier 4 Compliant / CARB Compliant (California)
- Super Fuel Efficient
- Use an XL Radiator
- HUGE Network of Service Centers
FEATURES
• Solid State Remote Control
• Large Battery Box
PUMP
• “Run-Dry” Capable UDOR Penta Pump
• 20 GPM @ 4000 PSI or 40GPM @ 2,000 PSI
• Power Belt Driven
• Dual Safety High Pressure Safety Valves and Pump Saver System
• Rear Throttle Control
NOZZLES
• Lazer
• Ram
MOTOR DESCRIPTION
• 58HP Yanmar Turbo Diesel Engine
• Low Noise Muffler
• EPA Tier 4 Rated Intermittent
• Low Engine Oil/High Temperature Auto Shutdown System
• 12-24 Gallon Diesel Fuel Tank
TRAILER DESCRIPTION
• Rugged, Compact Specially Engineered Trailer to Haul the Equipment and Water Load
• Leaf Spring Axles Cushion and Distribute the Weight for Easy Towing
• 5’x12’ to 5’x16’ Tandem Axle
• Single (1 x 7k) or Tandem Axle (2 x 3,500 lb)
• Dual Axle Brake – DOT Legal in all 50 States
• Full Premium Powder Coat
GENERAL SPECIFICATIONS
• 330 or 660 Gallon Water Capacity
• Molded HDP Water Tank(s)
• Nema 4 Rated Control Panel
• Low Water “Shut Off” Feature
• 10’ Safety Colored Leader Hose
• 2” x 36” Tiger Tail Hose Protector

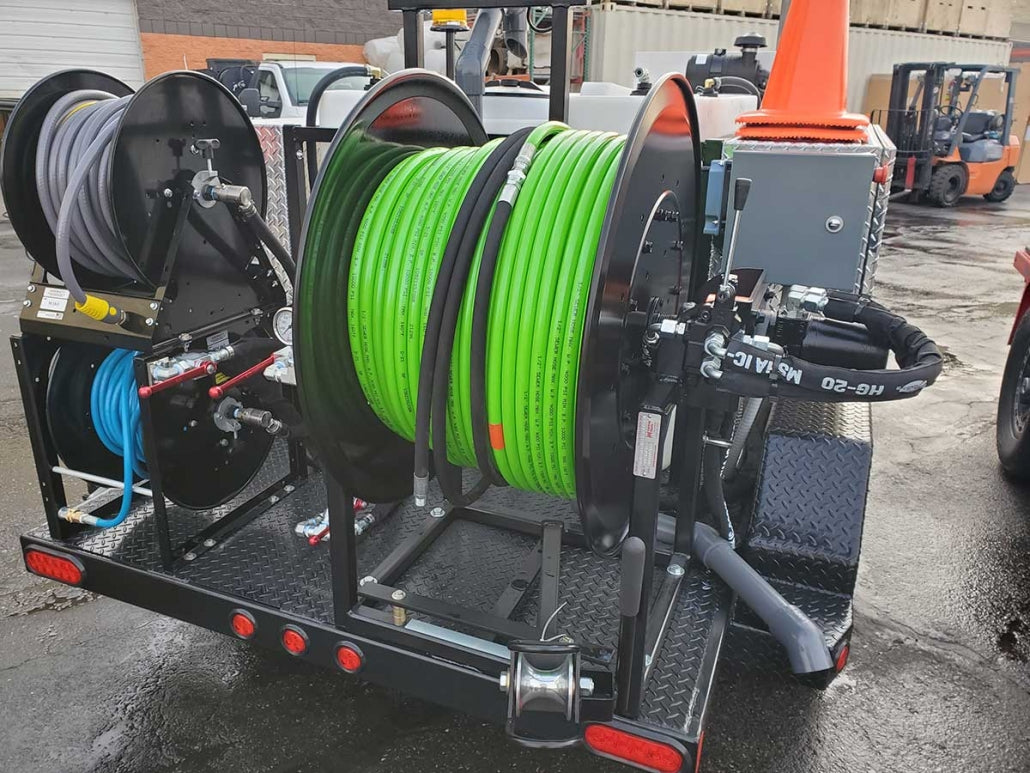

• Hydraulically Powered, Variable Speed Hose Reel with 500’ of 1/2” Jetting Hose Rated @ 16,000 PSI Burst Pressure
• Adjustable Pressure Relief/Control Valve(s)
• Adjustable Pulsation System with Control
• Rotary Beacon Light
